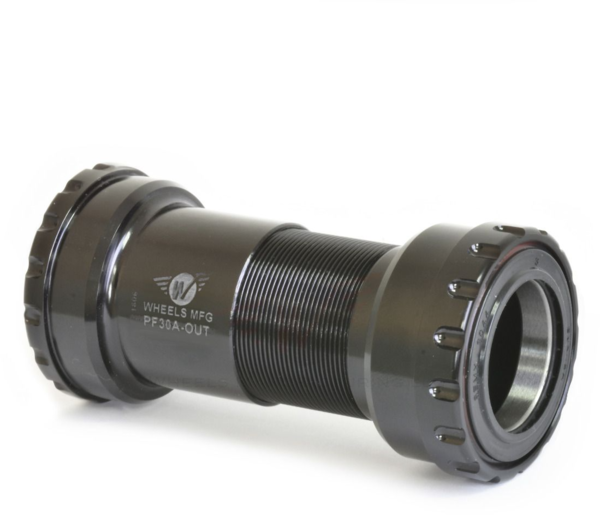

Wheels Manufacturing PF30A Outboard ABEC-3 Bottom Bracket for 30mm Spindles

Wheels Manufacturing PF30A Outboard ABEC-3 Bottom Bracket for 30mm Spindles
$144.25
Model: PF30A
Spindle: 30mm
Width: 73mm
Please select options Unavailable

Details

The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

Specifically designed for installing 30mm spindle cranks in Cannondale PF30A (46mm ID, 73mm wide asymmetrical BB shell) frames.

Bottom Bracket Includes:
- BB Cups with bearings
- 2x - Silicone dust seals
- 2x - 0.5mm crank spindle spacers
- 2x - 1.0mm crank spindle spacers
- Bearings: Enduro ABEC-3
- Bottom Bracket/Frame Interface: Cannondale PF30A
- Bottom Bracket Shell Width: 73mm Asymmetrical
- Bottom Bracket Shell I.D.: 46mm
- Over Bearing Width: 91mm in 73mm wide shell
- Crank Spindle Diameter: 30mm
- Tool Pattern: 48.5mm x 16 notch
- Weight: 158g

Part Numbers

Option UPC MPN Store SKU
PF30A / 30mm / 73mm 811079025951 PF30A-OUT-30MM 210000026490
